Reverse Osmosis (RO) system

- Perfect water for home brewing

Achieve ultimate control over your brewing water with this highly efficient reverse osmosis system. With three-stage filtration, the system effectively removes lime, chlorine, heavy metals, pesticides and other impurities, ensuring clean and neutral water, perfect for creating the exact water profile your brew requires.

Features:

• 3-stage filtration (pre-filter, activated carbon filter and RO membrane)
• Effective even at low water pressure (from 2.1 bar)
• Produces up to 12 litres of clean water per hour at 3 bar and 12°C
• Easy installation directly on existing tap
• Ideal for all types of beer brewing and precise water adjustment

Give your home brew the best start with the highest quality water. This RO system is the optimal choice for those who want to brew with maximum precision and flavour.

Content:

• 1 tap adapter
• 1 inline sediment filter 5µ
• 1 inline ball filter 5µ
• Osmosis membrane 75 GPD ULP - Ultra Low Pressure
• 1 diaphragm housing and collet
• 1 lige ud fitting m/ pakning med 1/2″ indvendig rørgevind
• 3 metre 1/4" plastic hose, 1 metre white, red and blue
• 450ml restrictor
• Brackets and screws for wall mounting

Extended User Guide

Installation

1. Location:
   • Find a suitable location close to water connection and drainage.
   • Make sure the system is stable and upright.
2. Assembly:
   • Remove the blue lock and hose to the RO membrane housing

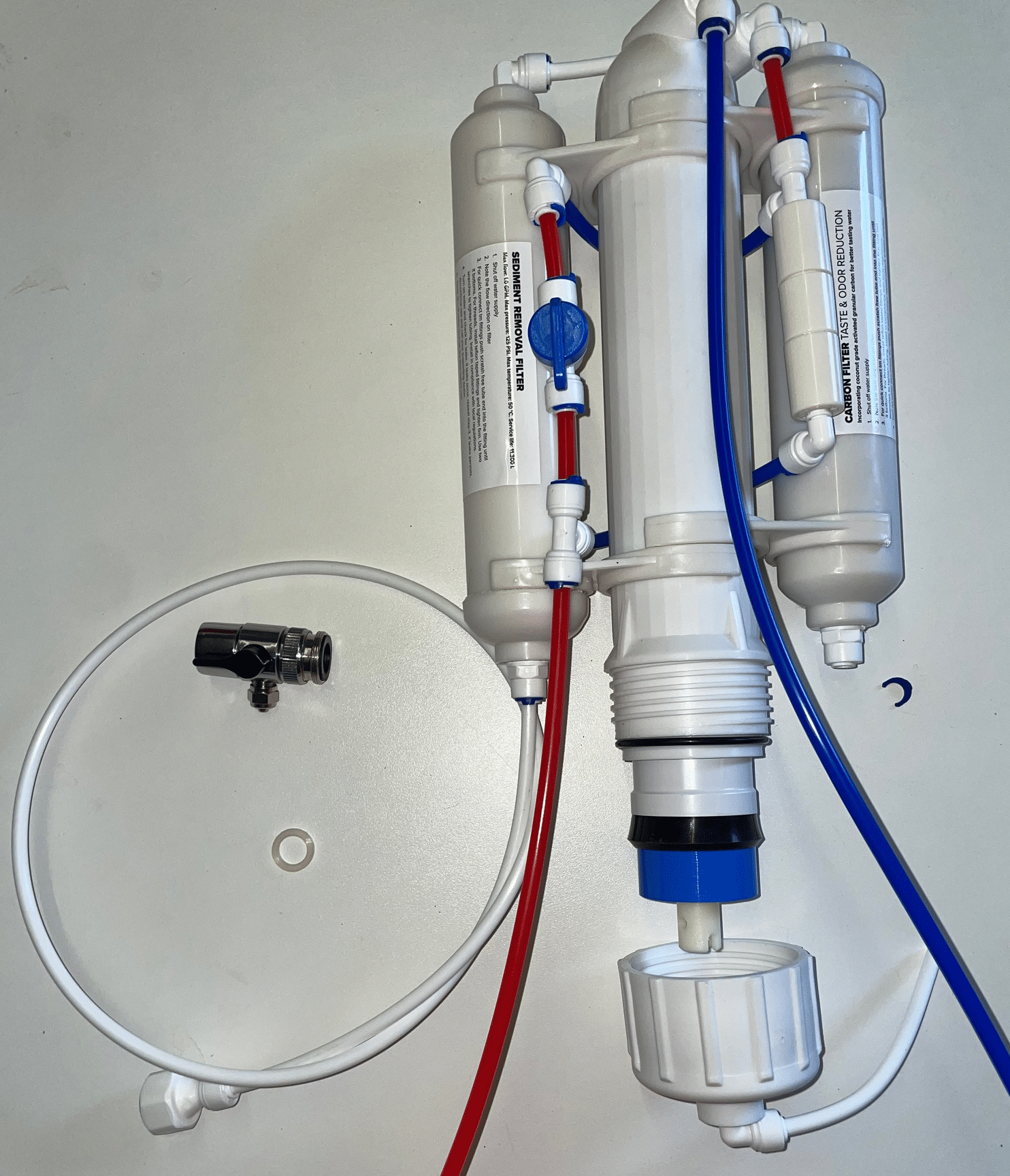

   • Install the RO membrane as shown in the picture and reinstall the hose.
   • Connect the water hose (white) to the system and the tap with the included adapter or tap connector.
   • Connect the waste water hose (red) and lead it to the drain or tank for garden watering etc.
   • Connect the RO water out hose (blue)
   • Replace all the little blue fuses.
   • The tap is used to adjust the ratio of spinning water to RO water.
3. Density test:
   • Slowly open the tap and check that all connections are tight.
   • Fix any leaks immediately.

Operation and use

1. Start:
   • Allow the system to run for at least 15 minutes on first use to clean the system.
   • Adjust the tap to about 1/3 RO water
   • If you have a TDS meter, you can fine-tune the ratio between RO and spin water for optimal water utilisation.
   • Now collect the first RO water.
2. Daily use:
   • Leave the system running and collect the purified water in a clean, preferably sterile container.
   • The water is now ready to use in your beer brewing.
3. Mineral customisation:
   • Customise the mineral profile as needed with desired salts (e.g. calcium chloride, calcium sulphate, calcium carbonate or magnesium sulphate). See more under Water treatment

Maintenance

• Filter replacement:
  • Sediment filter and carbon filter should be changed every 6-12 months depending on usage and water quality.
  • The RO membrane is typically replaced every 2-3 years or when efficiency drops noticeably.
• Regular cleaning:
  • Flush the system with clean water if it has not been used for an extended period of time.
  • Store the system in a dry place when not in use to avoid bacterial growth.

Troubleshooting

• Low water production:
  • Check the water pressure and temperature (ideally 2.1 bar and 12-20°C).
  • Check filters and membrane for clogging and replace if necessary.
• Leaky system:
  • Check all fittings and gaskets and tighten or replace if necessary.

Following this extended guide will ensure optimal performance, longevity and the best quality of your brewing water.
